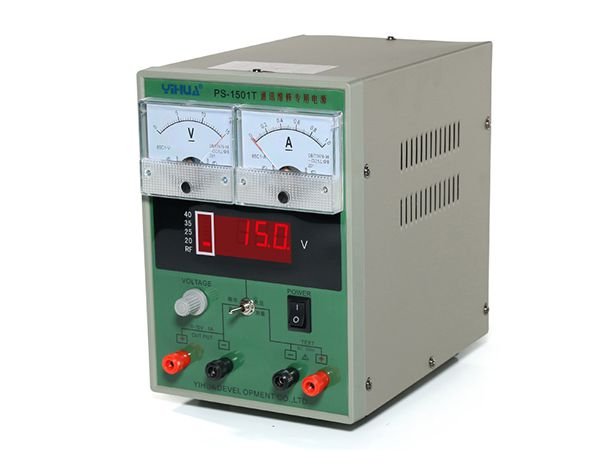

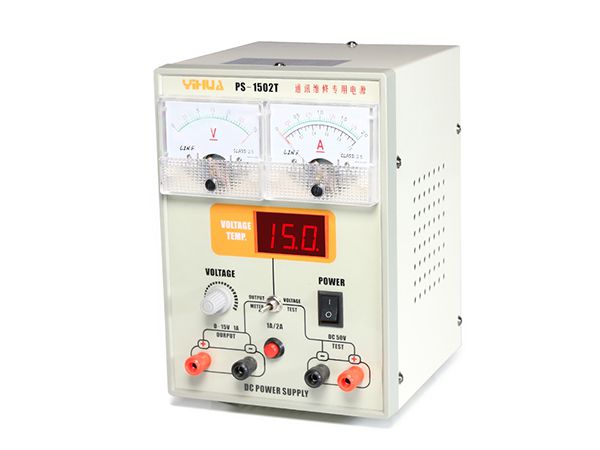

YIHUA-1501T /1502T DC Power Supply
Inquiry

YIHUA-1501T /1502T DC Power Supply

Features
  • YIHUA1501T Output voltage: 0-15V adjustable, current: 0-1A adjustable; YIHUA1502T Output voltage: 0-15V adjustable, current: 0-2A adjustable.
  • As the equipment with full power, DC power supply is stable, reliable, and durable.
  • It not only has the short circuit protection function, but also comes with the automatic recovery function.
  • Designed with the voltage test function, it can test the voltage ranging from 0-49.9V.
  • The model YIHUA1501T DC power supply has RF signal function.
Parameters
General Information
Rated Voltage AC 220V ±10% 50Hz
Whole Machine Power 20W
Working Condition 0 ~ 40 ℃ relative humidity < 80%
Storage Temperature -20 ~ 80 ℃ relative humidity < 80%
Dimensions 205*140*200mm
Weight 1.9KG
Performance
Output Voltage 0 ~ 15V
Output Current 0-1A
Source Effect 1.5mV
Loading Effect ≤0.13%
Ripple and Noise ≤4mV
Power Stability ≤0.5%
Measurement Accuracy 0.1V
Protected Mode Short circuit protection, automatic recovery function
Mobile Phone Signal Indicator RF
Phones Emission Interference Anti-interference

Application
The product can be used to offer 0-15V direct current output. Also, you can use it to test 0-49.9V DC voltage. This sort of DC power supply is primarily used in the mobile phone maintenance and other related industries.

Related Names
Variable Regulated DC Power Supply | Communication Electrician Power Device | Electronics Repair Power Supply
