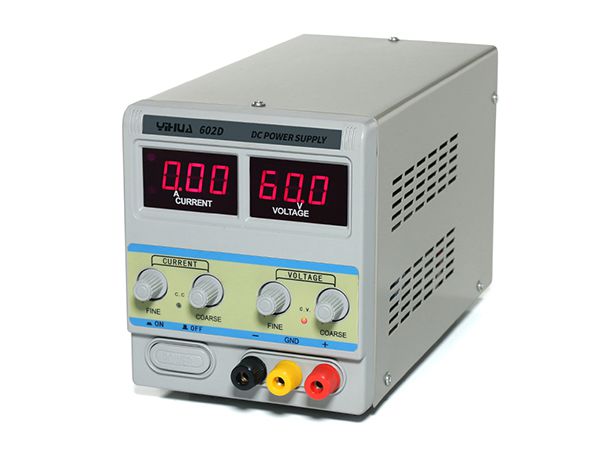

YIHUA-602D DC Power Supply

Inquiry

YIHUA-602D DC power supply is a single output precision DC power device, which provides output voltage and output current that are continuously adjustable within the rated ranges. It can automatically convert the work mode of constant voltage or constant current. This power equipment applies the dual digital display screen to independently display the output voltage and output current. It comes with functions such as current limiting, short circuit protection, over-temperature protection, and so on.

This power unit is extensively utilized in the factories production lines, maintenance, debugging, etc. It is also used in the laboratories and other places. Our YIHUA-602D DC power supply is the essential instrument of the communications industry.

Parameters
General Information
Rated Voltage AC220V 50Hz
Whole Machine Power 170W
Working Condition 0 ~ 40℃ relative humidity < 80%
Storage Temperature -20 ~ 80℃ relative humidity < 80%
Dimensions 255*130*150mm
Weight 5KG
Performance
Output Voltage 0 ~ 60V, adjustable
Output Current 0 ~ 2A adjustable. (If more than 0.2A, limit current regulation can be applied.)
Output Power 120W
Source Effect 1mV
loading Effect ≤0.33%
Ripple and Noise ≤3mVrms (5Hz ~ 1MHz)/≤3m Arms
Measurement Accuracy 0.1V/0.1A/1mA
Protected Mode Over current, short circuit, over temperature protection
Cooling Method Air cooling

Constant Voltage Constant Current (CV/CC) Principles
YIHUA-602D DC power supply can automatically convert under the condition of constant voltage constant current work mode. Its status is determined through the comparison between the values of loading current and limited current.

1. Constant Voltage Mode (CV)
The power device works in the constant voltage mode, when the current value is smaller than the set output limited current. The front panel constant voltage indicator will light up. Meanwhile, the output voltage will be controlled to be the same as the set value. The current will change according to the load.

2. Constant Current Mode (CC)
When the current value exceeds the limit value of the output current, the power unit will work in the mode of constant current. Besides that, the constant current indicator of front panel will light up, and the output current value will be controlled within the set value. Since the limited output power can not overload, the output voltage will be lower than the set value. Once the output current is lower than the set value, the YIHUA-602D DC power supply will automatically convert to the constant current work mode.

Related Names
Adjustable Regulated Power Supply | Voltage Regulator Power Supply | Communication Maintenance Power Device

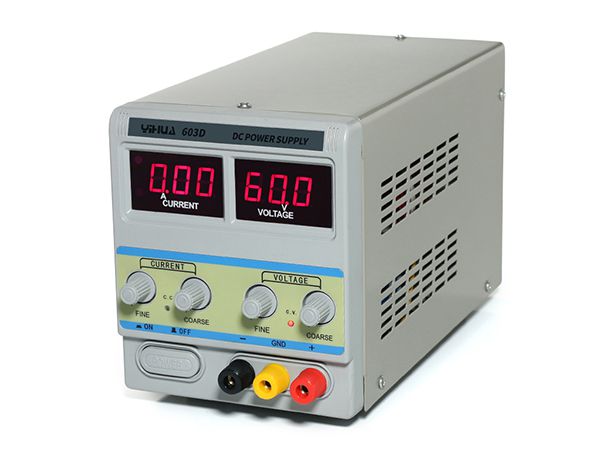

YIHUA-603D DC Power Supply

Inquiry

YIHUA-603D DC power supply is also called single output precision DC power device. Its output voltage and output current are continuously adjustable within the rated ranges. Because of its dual digital display screen, the output voltage and output current can be independently displayed.

This power equipment has a variety of functions, e.g. current limiting, short circuit protection, over-temperature protection, etc. It is specially designed for the factory production lines, maintenance, debugging, and so on. It serves as the essential instrument of the communications industry. Also, this YIHUA-603D DC power supply can be commonly found in laboratories or other places.

Parameters
General Information
Rated Voltage AC220V 50Hz
Whole Machine Power 250W
Working Condition 0 ~ 40℃ relative humidity < 80%
Storage Temperature -20 ~ 80℃ relative humidity < 80%
Dimensions 255*130*150mm
Weight 6.1KG
Performance
Output Voltage 0 ~ 60V, adjustable
Output Current 0 ~ 3A adjustable. (If more than 0.2A, limit current regulation can be applied.)
Output Power 180W
Source Effect 1mV
Loading Effect ≤0.33%
Ripple and Noise ≤3mVrms (5Hz ~ 1MHz)/≤3m Arms
Measurement Accuracy 0.1V/0.1A/1mA
Protected Mode Over current, short circuit, over temperature protection
Cooling Way Air cooling

Constant Voltage Constant Current (CV/CC) Principles
Under the condition of constant voltage constant current work mode, YIHUA-603D DC power supply can automatically convert. Through comparing the values of loading current and limited current, you can determine its status.

1. Constant Voltage Mode (CV)
When the current value is smaller than the set output limited current, the power unit works in the constant voltage mode, and the front panel constant voltage indicator will light up. In addition, the output voltage will be controlled to be the same as the set value. The current will change in accordance with the load.

2. Constant Current Mode (CC)
The power unit will work in the mode of constant current, when the current value exceeds the limit value of the output current. Not only will the front panel constant current indicator will be on, but also the output current value will be controlled to be below the set value. Because the limited output power can not overload, the output voltage will be kept lower than the set value. When the output current is lower than the set value, the power device will automatically convert to the constant current work mode.

Related Names
Computer Repair Power Supply | Industrial Power Source | Voltage Controlled Power Supply

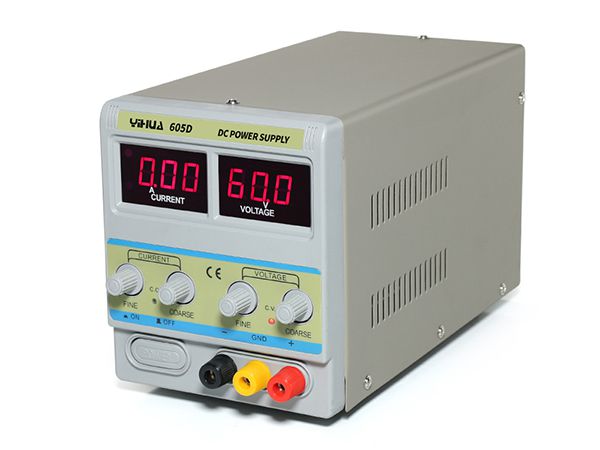

YIHUA-605D DC Power Supply

Inquiry

YIHUA-605D DC power supply is a single output precision DC power unit with output voltage and output current continuously adjustable within rated range. It is equipped with dual digital display screen to independently show the output voltage and output current. Various functions such as current limiting, short circuit protection, over-temperature protection, etc., are available. Therefore, this YIHUA-605D DC power supply is not only widely used in the factory production line, maintenance, debugging, laboratories, etc., but applied as the essential instrument of the communications industry as well.

Parameters
General Information
Rated Voltage AC220V 50Hz
Whole Machine Power 380W
Working Environment 0 ~ 40 ℃ relative humidity < 80%
Storage Environment -20 ~ 80 ℃ relative humidity <80%
Dimensions 255*130*150mm
Weight 6.1KG
Performances
Output Voltage 0 ~ 60V, adjustable
Output Current 0 ~ 5A adjustable. (If more than 0.2A, limit current regulation can be applied.)
Output Power 300W
Source Effect 1mV
Loading Effect ≤0.33%
Ripple and Noise ≤3mVrms (5Hz ~ 1MHz) / ≤3m Arms
Measurement Accuracy 0.1V/0.1A/1mA
Protected Mode Over current, short circuit, over temperature protection
Cooling Method Air cooling

Remark: The power supply has no YIHUA1502USB

Constant Voltage Constant Current (CV/CC) Principles
YIHUA-605D DC power supply can automatically convert when working in the mode of constant voltage constant current. Its status can be determined by the comparison of loading current value and limited current value.

1. Constant Voltage Mode (CV)
When the set output limited current is larger than the current value, the power unit will work in the constant voltage mode. Then, the front panel constant voltage indicator will light up, and the output voltage will be controlled to be the same as the set value. The current will change as the load changes.

2. Constant Current Mode (CC)
This YIHUA-605D DC power supply will work in the mode of constant current, if the current value is larger than the limit value of the output current. Moreover, the front panel constant current indicator will be on, and the output current value will be controlled to be below the set value.

The limited output power can not overload. For that reason, the output voltage will be kept lower than the set value. Once the output current is below the set value, the power device will automatically convert to the constant current work mode.

Related Names
Voltage Regulated DC Power Source | Laptop Maintenance Power Supply | Short Circuit Protected Power Supply
