YIHUA 992D III High Power 2-in-1 Hot Air Soldering Station with C210/C245 Soldering Iron Kit

• 2-in-1 high-power hot air soldering station: Combines a high-power hot air rework system with a C245-compatible soldering iron. Designed for soldering and reworking BGA components and complex PCBs. Both the micro soldering iron and SMD rework station can operate simultaneously—ideal for multitasking or dual-user setups without the need to switch handpieces.

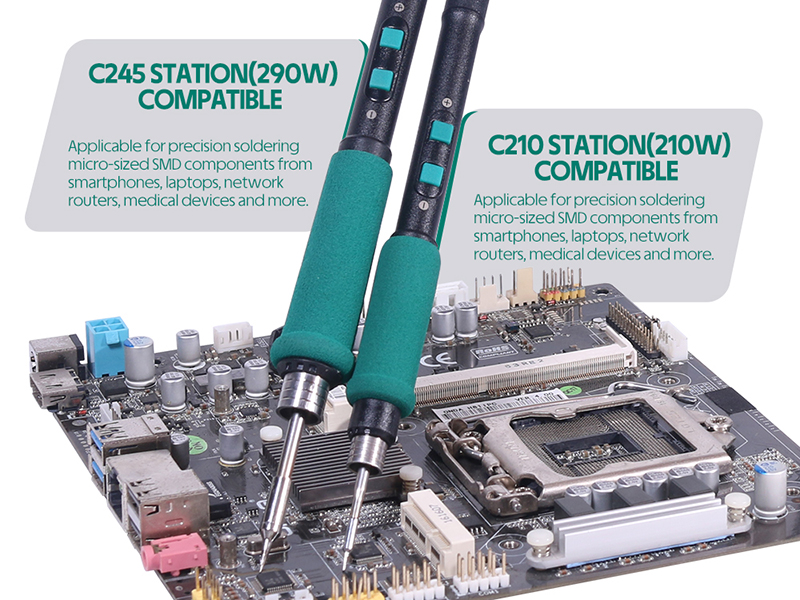

• C245-compatible soldering iron kit: Features a high-precision soldering iron with a cartridge-type heating element that heats up in just 3 seconds. Perfect for both SMD and general soldering tasks. Its slim tip design offers a clear line of sight, making it ideal for working under a microscope and in tight spaces.

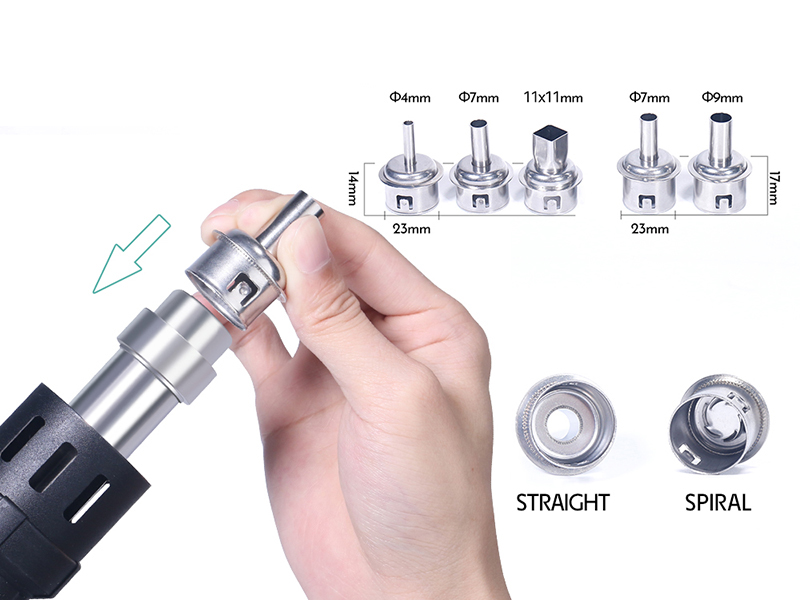

• 1000W hot air rework station: Offers an adjustable temperature range of 100–500℃ and a maximum air volume of 55L/min. Delivers rapid and concentrated heating for BGA components. Includes the industry's first detachable high-power hot air handpiece for easy replacement and high-frequency use. Comes with interchangeable nozzles and a storage rack.
• User-friendly LCD display: Independent LCD screens for the soldering iron and hot air station show real-time temperature and system parameters for easy monitoring and control.
• ow-wear standby mode: When placed in the holder, the soldering iron automatically cools to 200℃, and the hot air gun cools to 100℃, significantly extending the life of the heating elements and reducing wear on precision components.
• Convenient presets and smart menu: Three customizable preset channels allow you to save preferred temperature and airflow settings. The integrated menu includes buzzer alerts, digital temperature calibration, °C/°F conversion, and standby timer settings for personalized operation.

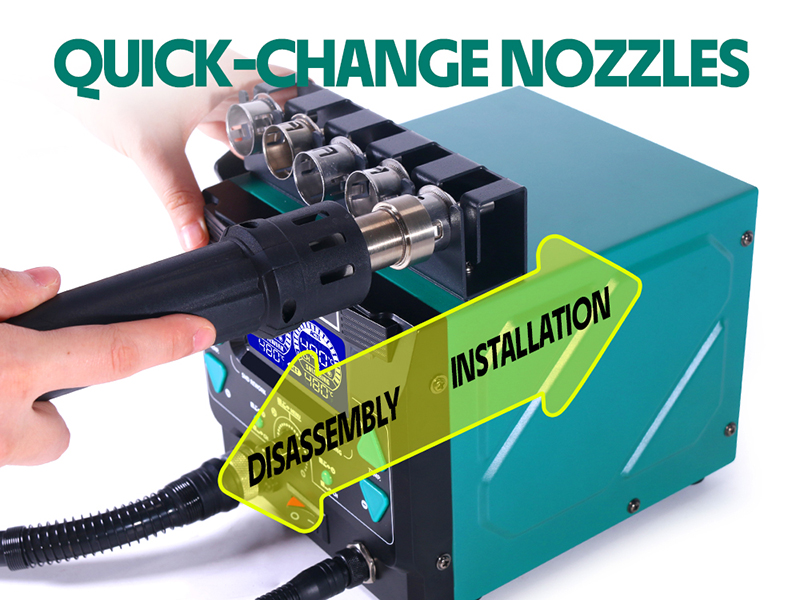

Installation without Adapters and Screws
No additional tools needed – quick and easy to install or replace.

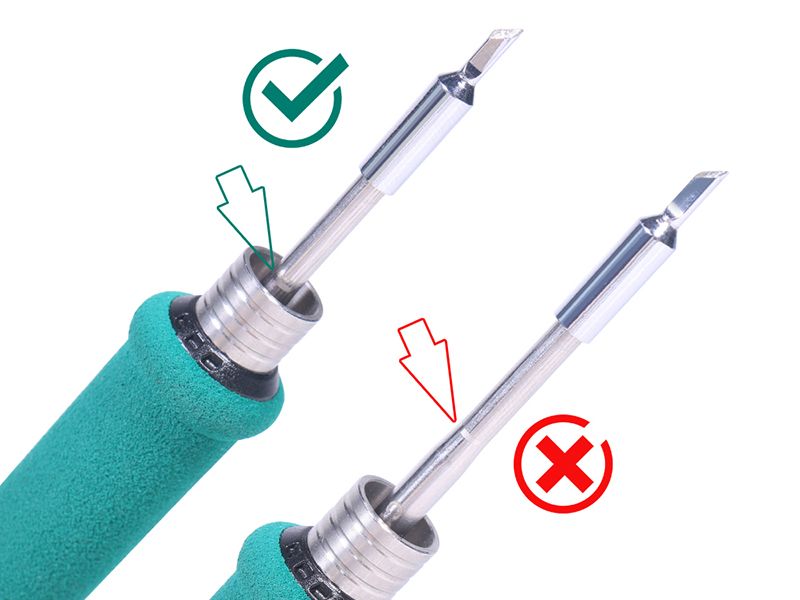

Proper Installation of the Soldering Iron Heating Element 992D III 4

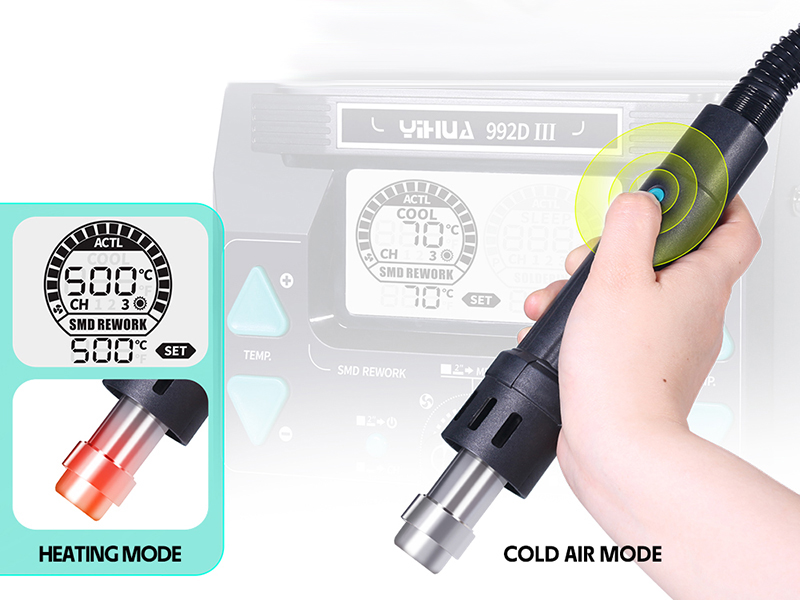

One-Button Conversion

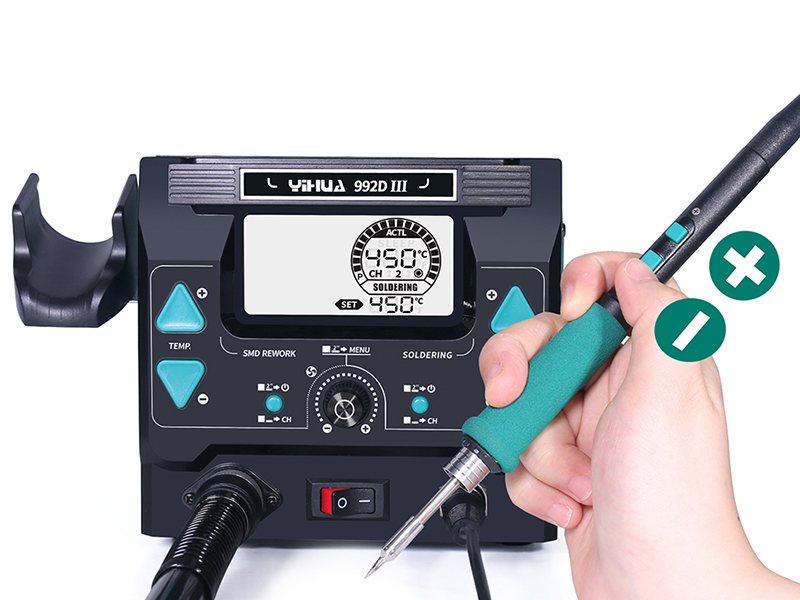

Quick-Access Button
Convenient handle button for fast temperature adjustments.

Hotkey Operation
Easily set hot air and soldering iron temperatures using dedicated hotkeys.

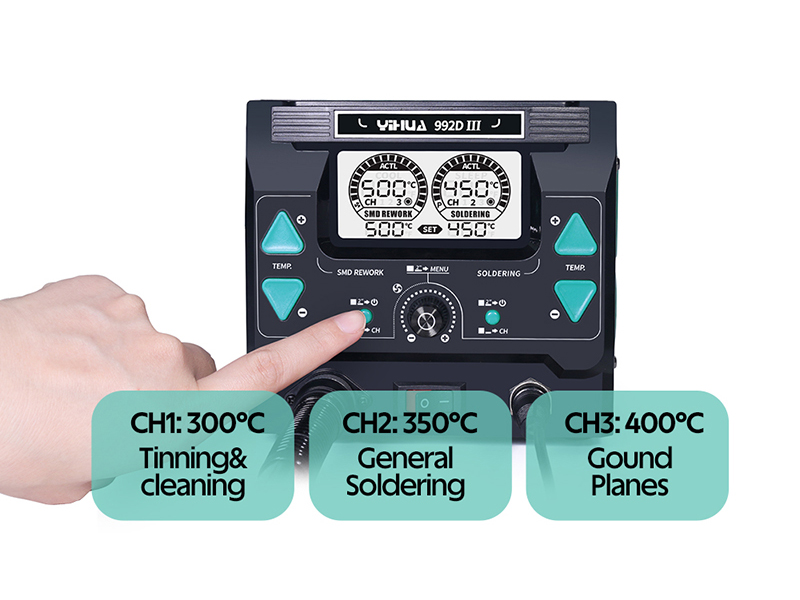

Three Preset Channels
The noted temperature settings are for reference only. Users can customize each channel to match specific work requirements.

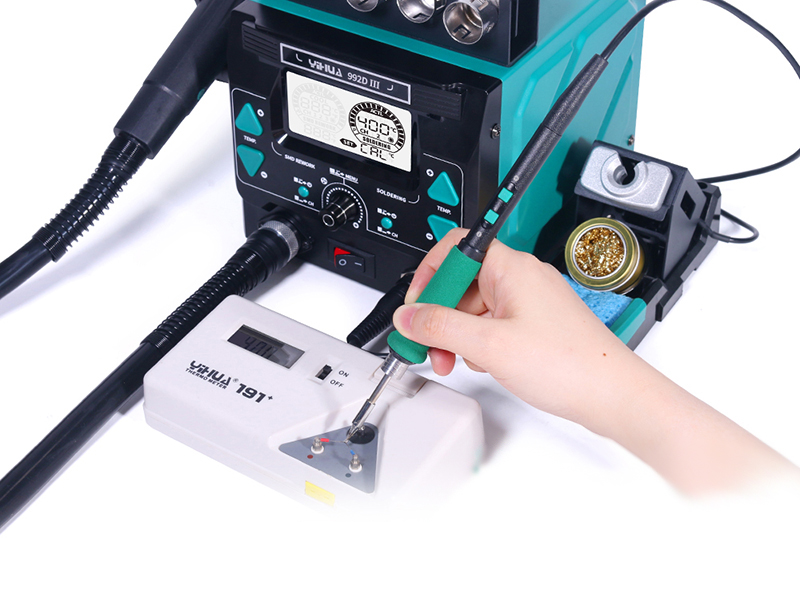

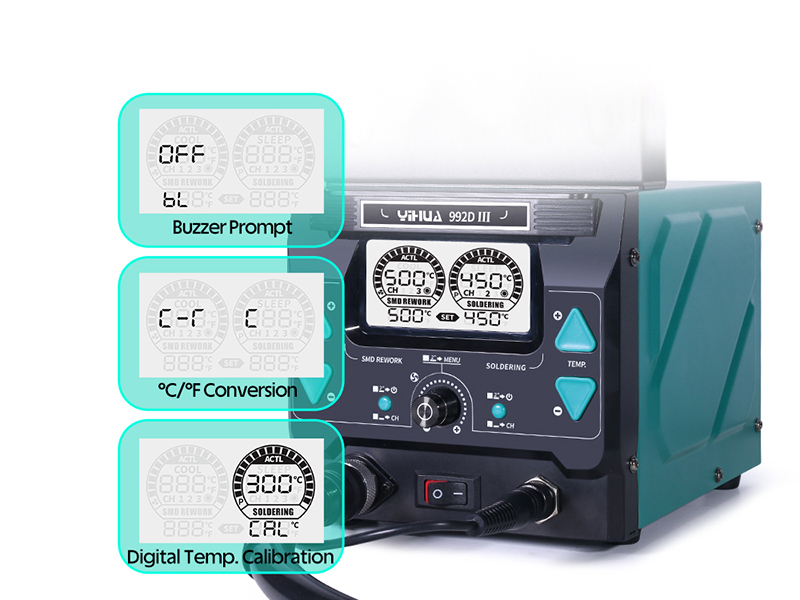

Intelligent Temperature Calibration

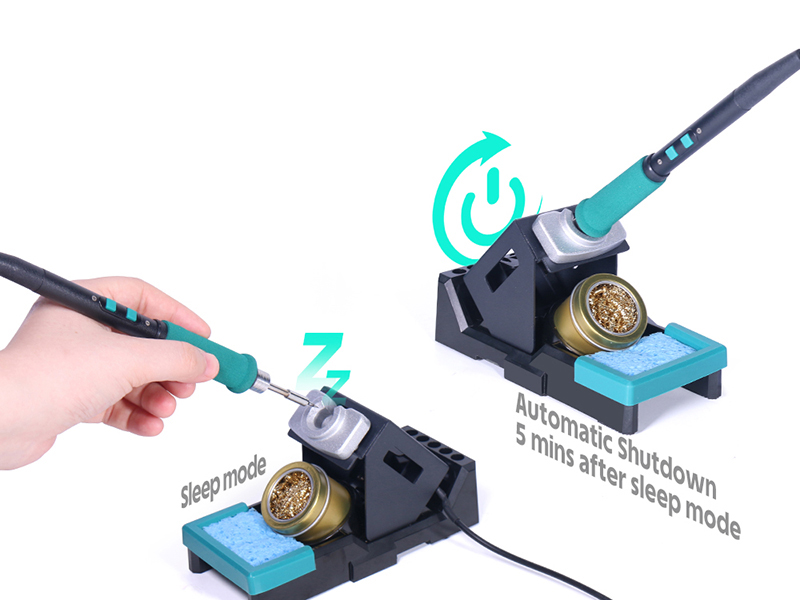

Sleep Mode and Auto Standby
Extends tip lifespan and enhances safety by automatically reducing heat when not in use.
