YIHUA-853A/946B Series BGA Preheating Station
Inquiry

853A/946B Series BGA Preheating Station

Features
  • IHUA-853A/946B series BGA preheating station is made with the anti-static design. It utilizes import-infrared ceramic heating element characterized by high heating efficiency and long service life.
  • A thermometer allows for convenient detection of PCB temperature.
  • The preheating station applies the sensor closed loop PID control to make sure the temperature accuracy and stability.
  • It can be used for preheating the circuit board, or used to other places that require uniform heating of the whole process.
Parameters

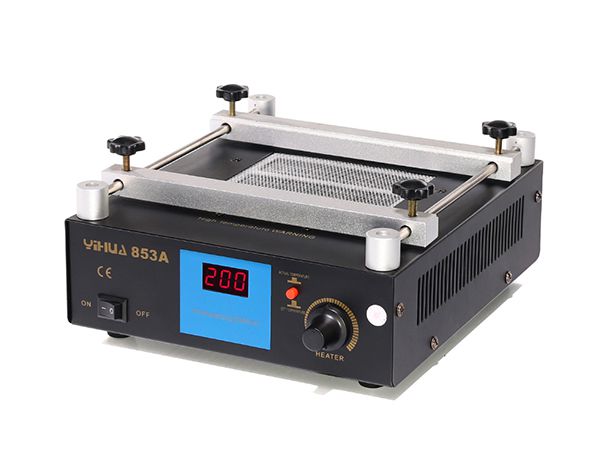

  • Item: YIHUA-853A
  • Work Voltage: AC 220V±10% 50Hz
  • Output Power: 600W
  • Heating Zone Area: 130X130mm
  • Heating Zone Material: Ceramic heating element
  • Temperature Sensor: K-type thermocouple
  • Temperature Control Range: 50℃--350℃
  • Thermometer Test Range: 0--400℃
  • Ambient Temperature: 0--40℃
  • Over Dimensions (mm) : 255(L)X200(W)X63(H)mm
  • Weight: 2.5Kg
  • Item: YIHUA-946A
  • Work Voltage: AC 220V±10% 50Hz
  • Output Power: 600W
  • Heating Zone Area: 130X130mm
  • Heating Zone Material: Ceramic heating element
  • Temperature Sensor: K-type thermocouple
  • Temperature Control Range: 50℃--350℃
  • Thermometer Test Range: 0--400℃
  • Ambient Temperature: 0--40℃
  • Over Dimensions (mm) : 218(L)X218(W)X130(H)mm
  • Weight: 2.5Kg

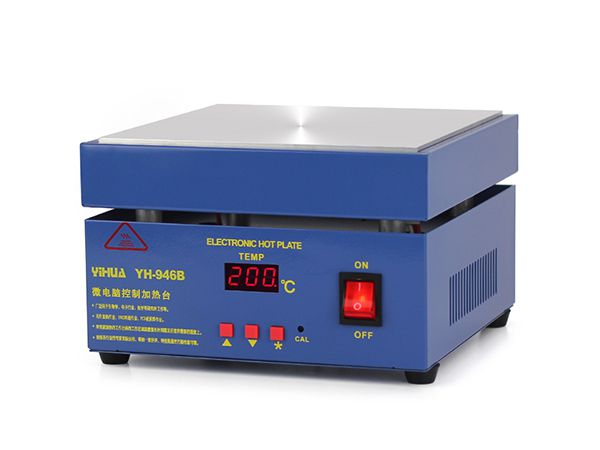

  • Item: YIHUA-946B
  • Work Voltage: AC 220V±10% 50Hz
  • Output Power: 800W
  • Heating Zone Area: 200X200mm
  • Heating Zone Material: Ceramic heating element
  • Temperature Sensor: K-type thermocouple
  • Temperature Control Range: 50℃--350℃
  • Thermometer Test Range: 0--400℃
  • Ambient Temperature: 0--40℃
  • Over Dimensions (mm) : 218(L)X218(W)X130(H)mm
  • Weight: 2.5Kg
