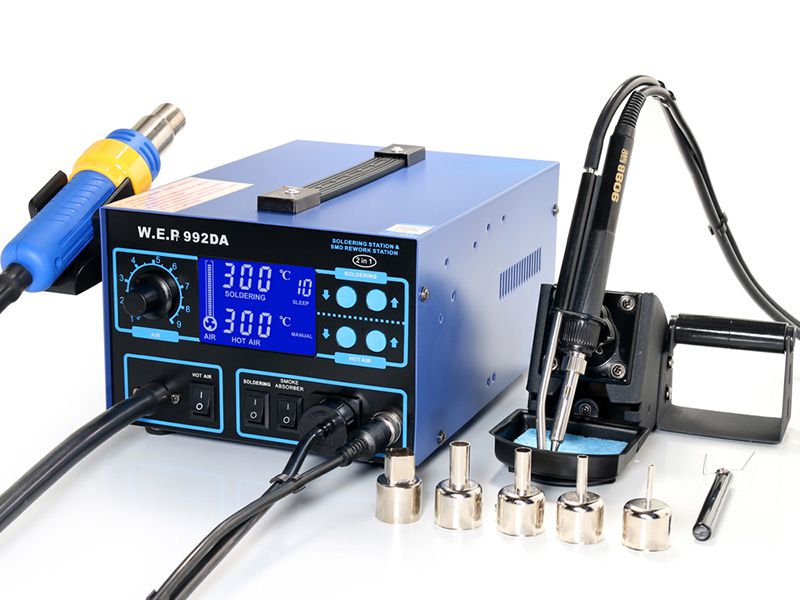

LCD Display Pump Type Hot Air Soldering Rework Station with Smoke Absorber, Item WEP-992DA
Description
The Yihua WEP-992DA hot Air Soldering Station is designed for high-quality soldering and de-soldering of multiple types of electronic components. It has special advantages for the de-soldering of mobile phone flex cables and cable boards. The soldering iron handle also comes with a sleep mode and smoke absorbing function, the smoke absorbing pen can effectively remove exhausted smoke which provides a clean and healthy environment for operators.
| Rated voltage | AC 220V±10% 50Hz |
| Power | 720W±10％（Max） |
| 300℃The thermostat power of (high-speed PID programmable energy saving) | 250W±10％ |
| Working environment | 0～40℃ relative humidity＜80％ |
| Storage environment | －20～80℃ relative humidity＜80％ |
| Body size | 255*188*125mm |
| Weight | 5.11KG |
| Parts parameters | Hot air gun | Soldering iron |
| Work voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz |
| Output power | 550W | 75W |
| Temperature range | 100℃～480℃ | 200℃～480℃ |
| Airflow type | Diaphragm pump | --- |
| Air Flow | 28L/min(MAX) | --- |
| Temperature Stability | ±1℃ (Static) | ±1℃ (Static) |
| Display Type | LCD display | LCD display |
| Temperature correction type | The PID digital program proofreading | The PID digital program proofreading |
| PID Temperature correction cycle | rapidly 20ms | high-speed 100ms |
| Heating elements | Ceramic skeleton heater | Imported heater |
| Standard nozzles/tips | (10mm,8mm,5mm,3mm,13mm) 5PCS nozzles | B |
| Tip ground impedance | --- | ＜2Ω |
| Tip of ground voltage | --- | ＜2mV |
Power Cable: 1 pc

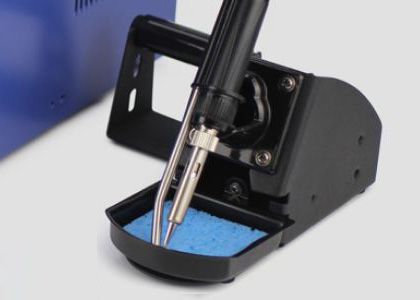

Iron Handle (including a heater and tip): 1pc
Air Gun Handle: 1pc
Ferroalloy Iron Holder: 1pc
Air Nozzle: 5pcs
Smoke Absorption Sponge: 5pcs
IC Extraction Tool: 1pc
Instruction Book: 1pc
